Description

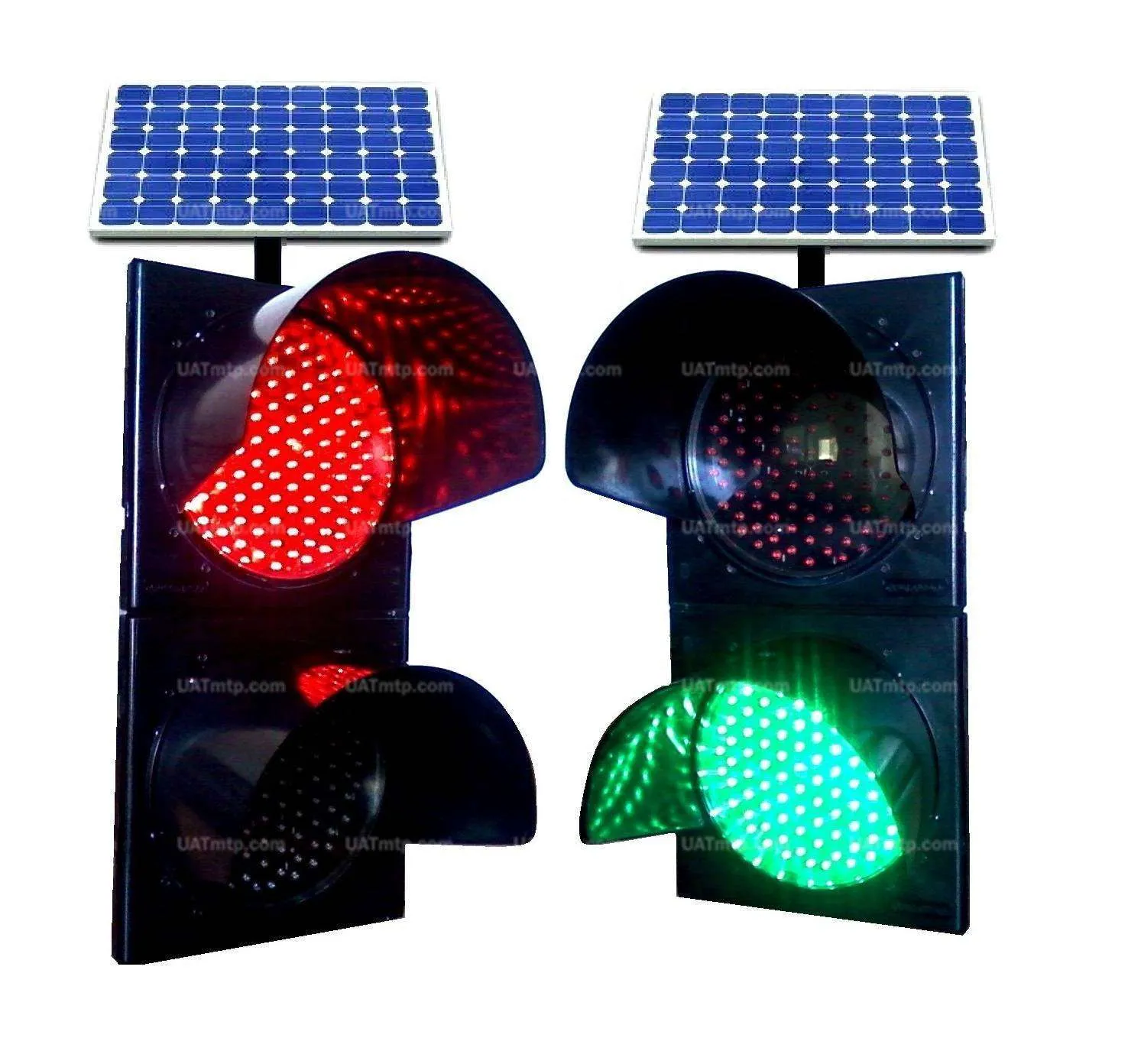

MTP Solar Traffic Signal Two Colors

Two Colors Solar Traffic Signal lights are suitable for the Parking areas, Entrance gates, Exit gates, Loading and Unloading area, and Road Construction work.

It is powered by a solar panel, so it doesn’t need a city electricity line and for this reason, its installation is very simple and no need for any cabling from electricity line and because of its powered by a solar panel, it is free of charge for monthly electricity consumption

This kind of traffic signal light is suitable for installation side of the road for notification to driver for Pedestrian crossing, Fork of road, Exit of road, Head of the pedestrian sign, Construction sign, High-risk area.

Benefits of solar traffic signal lights include:

• Environmental Friendliness: They reduce reliance on grid electricity, thus lowering carbon emissions.
• Cost Efficiency: Once installed, they have lower operating costs since they use free solar energy.
• Reliability: They can operate independently of grid power outages.

Solar traffic signal lights are particularly useful in remote areas where extending electrical infrastructure is costly or impractical. They also contribute to sustainability efforts by reducing the carbon footprint associated with conventional traffic signals.

Technical Specification,

• Dimension: 300*710*180 mm
• Body Material: Polycarbonate
• Solar power: 50 watt, warranty 20 years
• Battery: Internal 12 volt, 26 Ah, sealed lead acid (have not individually battery casing)
• Led quantity: 220 pcs super high bright
• Light luminous: 8000 mcd
• Automatic regulation light intensity in day and night (day intensity 5 times night)
• Charge controller with microcontroller
• Lenz material: Polycarbonate
• Working time after full charge: 7 days
• Working time in cloudy weather: 14 days
• Visible distance: more than 2 km
• Angle: 90 degree

Quality of Parts,

Full mask of Flashing Light,

The diameter of full mask is 330 mm in top side and in the point of its connection into main body; this mask has the 300 mm diameter with depth of 215 mm. This connection is done by screw, being put on the body.

Half mask,

The height of this mask is 185 mm in outside of the body and its width is considered 230 mm in the place of its connection with main body. This is done by a screw, being put on the body.

Door,

Door shall be fastening on the body, in a shape toggle. Also, it has a rubber for the purpose of insulation.

Casing,



Lenses,

External lenses made with grid polycarbonate, to being suitable for lens.

LED

Module,

LED’s are identified very well and amount of their desired life is 100.000 hours in lawful range for traffic light and traffic signals and its light intensity is 8000 mcd.

External lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects electronically set and filter from damages, resulting from strong shock
(stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker.

Batteries,

Internal 12 volt, 26 Ah, sealed lead acid(have not individually battery casing)

Sealed Lead Acid Battery

Solar Panels,

50 watt, warranty 20 years

Solar Panel

Brackets,

Each Flashing light has a pairs of holder for connecting main body to its pole, called Bracket.

Brackets

Round Clamp(Hose Clips),



Hose Clip

Environmentally Friendly,

T It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product.It results in a decrease in the outside temperature.

Image Reference;

Useful Points,
