Description

MTP Pedestrian Crossing Violation Detector Double Lane,

MTP Pedestrian Crossing Camera double lane is a traffic enforcement camera that recognizes violator drivers who do not give way to pedestrians while crossing double lane zebra area.

Platform,

This camera captures the vehicles when the driver does not give way to the pedestrian while crossing the double-lane zebra area.

In terms of technology, pedestrian crossing cameras typically use video analytics and image processing techniques to detect pedestrians accurately and distinguish them from other objects or vehicles.

Privacy considerations are important in the deployment of these cameras, and many jurisdictions have policies in place to ensure that surveillance is conducted ethically and in accordance with privacy laws.

Explanation,

A pedestrian crossing area means a specified part of a road where pedestrians have right of way to cross.
To making the safety of every individual and be aware between the drivers and people on the roadside, we complete the best detector system which is the “Pedestrian Crossing Violation Detector”.
Pedestrian Crossing areas on the road must be safe for pedestrians and cars should stop behind of line before reaching to pedestrian crossing area if individuals are attempting to cross the road.

Technology will Help Human Beings Once More,

But as we observed some drivers don’t stop behind of line and continue their movement even though the pedestrian is walking in a zebra area and which is very dangerous for pedestrian and sometimes cause an accident.
To reduce this violation, we produced intelligent violation detectors to help the management of traffic safety, especially in the zebra area.
Pedestrian Crossing Violation Detector install beside of crossing area and detect violator cars who don’t stop behind of line and continue their movement even pedestrian is walking.

Violation Area

As you can see in the above picture, there are three areas:

1. Zebra Area
2. Yellow Mark
3. Stop Line

1- Zebra Area

A Zebra area is a specific place for pedestrian cross walking and is always monitored by the smart camera to find pedestrians. So, our camera must continue monitoring the Zebra area which means the cars that were passing the road while there are pedestrians.

2- Yellow Mark

Yellow Mark and stop lines are always monitored by cameras to find vehicles. This area can be adjusted depending on the inquiry.

3- Stop Line

If any vehicle passes the stop line or yellow mark while a pedestrian is crossing on zebra area, Radar will activate and take video and photos of the violator’s vehicle.

ANPR,

ANPR will process the vehicle plate and extract the plate number and send it directly to Police Control Room along with the violation video/picture and
details of date, place, and some other information, here our ANPR will cover double lane.

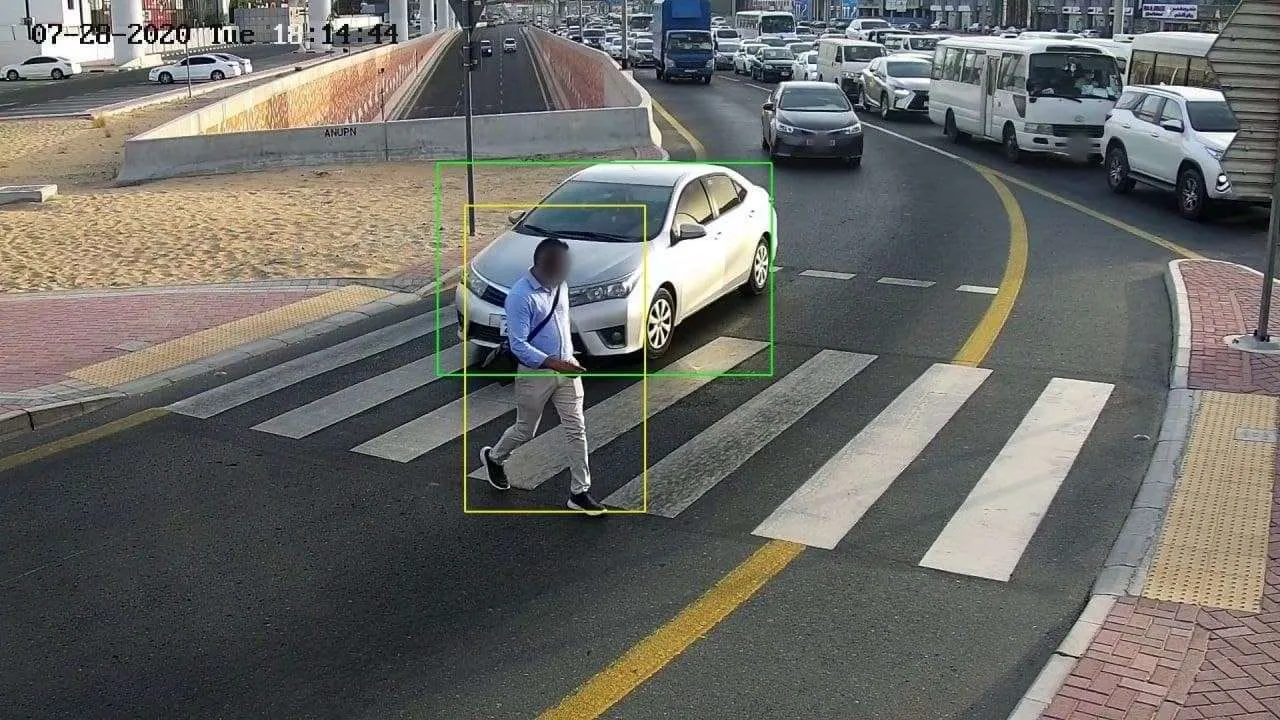

For example, the above picture is showing that the silver car is continuously passing in the zebra area while the guy is walking in the zebra area.

Violation Pictures and Data,

The violation detector takes 2 pictures and one video and produces XML data:

1- One picture for the exact violation time,
2- Second picture for a few moments after the violation (its time is depending on the client’s request).
3- One video which covers a few seconds before the violation time and a few second after the violation time to be as a reference for police in case he wants to check the violation time to make a fine for the drivers who violated traffic in the pedestrian crossing area (its time depends to client request).

Violation Pictures Samples,

We developed our system to cover Four Lines, so now it can detect all violations on four lanes with only a single radar.

XML,

XML Data has information on Site Code, Location Place, date, Time, Radar ID, Plate Number, and Warning Light timing Passed as Police required setup.

Collection data,

Our system can save violation images and videos on USB flash memory or can send as online to police stations via secured internet.

ANPR,

Our system has ANPR (Automatic Number Plate Reader) as optional.

ANPR Status Bar,

• Site Code,
• Radar ID,
• Date and Time,
• Location Place,
• Plate Number,
• Picture of Plate,

PTZ Camera Specification,

• Power Supply 12-volt DC,18w (Max 7 watts for IR),
• Full HD resolution,
• Weight 2kg,

Solar Panels would not damage the Environment,

Using green energies like solar power will cause a decrease in greenhouse gases. it causes a decrease in environmental temperature.

Where you install,

MTP Pedestrian Crossing Violation Detector can be installed beside of road or over the road on the cantilever and detect violator cars who making Violation while driving.

Router,

After detection violation, camera will record two images and one video of violator vehicle and save it in mini-PC.

These images and video along with its data like as date, hours and place can send to traffic control section of police office via one Router which is
embedded in our over Pedestrian Crossing Violation Detector.

Router Specialization,

So, violation data and images and videos in our violation detector can be collected in three following ways:

1-Sim Card

This Router has one Sim Card which was provided by the police. It can make a secure connection between our violation detector and the police office.

2-WIFI

Another option is available with our system and it is WIFI collection data. This means police officers can collect all data and images and videos with a stop
beside of camera for a few minutes, so data and images, and video will transfer from our violation detector to a police laptop with a WIFI connection.

3-USB

One more option is available also for collecting data and it is USB memory.

Data Transferring,

The product is included,

• Two Camera
• Mini-PC
• MTP Software for Double Lane
• Router
• MTP ANPR for Double Lane
• Warning Light
• Solar Panel (100w)
• Battery (100A)
• Decorative Post (Hot Galvanize)

Technical Specification,

Useful Points,

MTP is a manufacturer of Traffic Products and Smart Traffic Cameras & Radars.

MTP offers you a wide range of Traffic-Related Products, One stop solution for engineering, electrical, electronic, and technological needs,

To Order this product or any other so please Contact us and please follow our social media platforms Facebook, Instagram, LinkedIn, Twitter, and YouTube, for any future updates or queries.
