LED Smart Speed Radar Display Sign with Digital Face

3,130.00$

Smart Speed Radar Displays are valuable tools for promoting road safety by raising awareness of speed limits and encouraging responsible driving behavior among motorists. Their effectiveness lies in providing real-time feedback and reinforcing the importance of adhering to posted speed limits for improved road safety.



Here are MTP Smart LED Speed Radar Sample Videos,

Speed Radar Sign Sample Video

Speed Radar Sign Sample Video

Smart Speed Radar with Digital Face Data Sheet

For Reference Pictures please visit our Folder  Gallery

To Order this product or any other so please Contact us and please follow our social media platforms FacebookInstagramLinkedInTwitter, and YouTube, for any future updates or queries.

Description

MTP LED Smart Speed Radar Display Sign with Digital Face and Speed Limit

We Produce Solar Your Speed Radar Signs as the customer requested design, Solar Your Speed Radar signs bring traffic calm to areas where speeding is an issue.

What is this Platform Exactly?

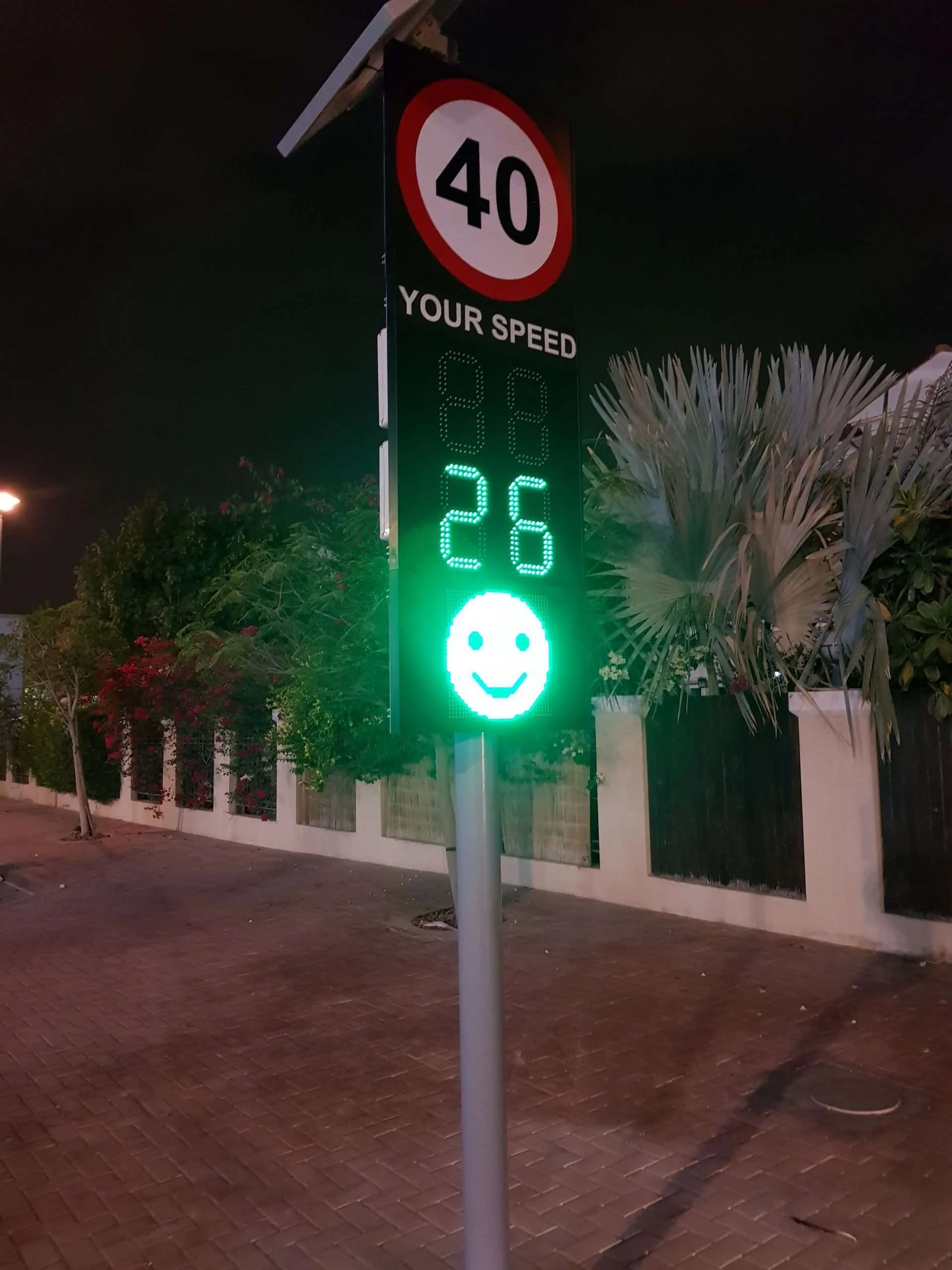

MTP Product LED Smart Speed Radar Display Sign with Digital Face is included Two Seven Segment, Digital Face, Speed Limit Sign. Speed Limit can be set customer manually by Push Button Switch which is embedded on the rear of the Sign. Smart Speed Radar notifies the driver of vehicle speed, it shows a Green display on the radar which is included vehicle speed and a happy emoji face, and shows a Red display on smart radar which is showing vehicle speed and sad emoji face.

Explanation,

When the vehicle drives into the radar detection area (about 100 meters in the front of radar sign), the microwave radar will automatically detect the speed of the vehicle and the speed will be displayed in the sign to
remind the driver to reduce driving speed, which Effectively reduces the road traffic accidents caused by high-speed driving.
Speed feedback device has a significant eye-catching induction driving function, and can significantly reduce traffic accidents, to achieve safety guidance.

Advantages,

Solar Your Speed Radar Signs warn drivers that they are entering a speed zone or going over the speed limit.

Check out MTP’s robust solutions, and feel free to contact us if you have any questions on how we can make your streets safer!

Features,

  • Uses Solar Energy as a source of electricity
  • Display effects include active flash & passive reflection
  • Inside the key switch control, if turn on, all systems will function (solar panel, LED light, charging), and the opposite function for turn off.

Components

LED,

The total numbers of LEDs in one module are equal to 392 pcs for the Seven Segment and 2048 pcs for the face display,

Face Display Module,



Battery,

Sealed Lead Acid batteries of 3×12v *18Ah, total 54Ah, having desired life of 5 years.

Inverter,

We used DC to DC converter for preparing 5 volts from 12 volts to supply LED display modules.

Solar Panel,

A solar panel is 50W, 18v 5.5A, with an efficiency of 16%.

Mechanical Specification,

  • Body material: Aluminum Sheet
  • Dimension: 60 cm*173 cm*5 cm
  • Weight: 30 KG
  • Solar Power: 100 Watts, Life time more than 20 Years
  • Battery: Internal 12-volt, 54 Ah, sealed lead acid
  • LED Quantity: 392 pcs Super high bright
  • LED Color: 196 pcs Red, 196 pcs Green
  • LED Life: More than 100,000 Hours
  • Light Intensity: Automatic regulation of light intensity day and night (day intensity 5 times night)
  • Light luminous: 8000 mcd
  • Light Increment: Charge controller with microcontroller
  • Display model: 2 digits with 7 segment LED board and Face
  • Speed Detection Rang: 1km/h –99km/h
  • Detection Distance: ≤100m
  • Operating Temperature: -20° C to 75° C
  • Frame: Aluminum profile with special design
  • Frame size: 5*5*0.2cm
  • Color quality: Electrostatic Powder Coating
  • Color: Black Matte
  • Front sheet material: Plexiglas with special finishing to prevent skylight reflection
  • Installation stand: Special U Chanel as UAE Traffic Sign standard

Radar,

Special device operating (24GHz)

Spare Parts,

5-inch Hose Clamp

3-inch Stainless Steel Clamp

Environmentally Friendly,

It results in a decrease in the outside temperature.

Where you install,

The LED Smart Speed Radar Display Sign with Digital Face is fixed on the road left or right, or just above the road, so that the direction of the radar port to the car, the tilt angle of not more than 10 degrees.
If it is fixed above the road, the radar fixed position should be radar Cavity oblique angle alignment to the car location.

Useful Points,

MTP is a manufacturer of Traffic Products and Smart Traffic Cameras & Radars.

MTP offers you a wide range of Traffic-Related Products, One stop solution for engineering, electrical, electronic, and technological needs,

To Order this product or any other so please Contact us and please follow our social media platforms FacebookInstagramLinkedInTwitter, and YouTube, for any future updates or queries.
