Solar Runway Closure

Description

MTP Solar Runway Closure

MTP Produce Solar Runway Closure as per customers requested design.

This parameter is one of the best options we offer. if you want something special you can easily trust us to do what you need.

we will design and manufacture the best-qualified products as per your wish.

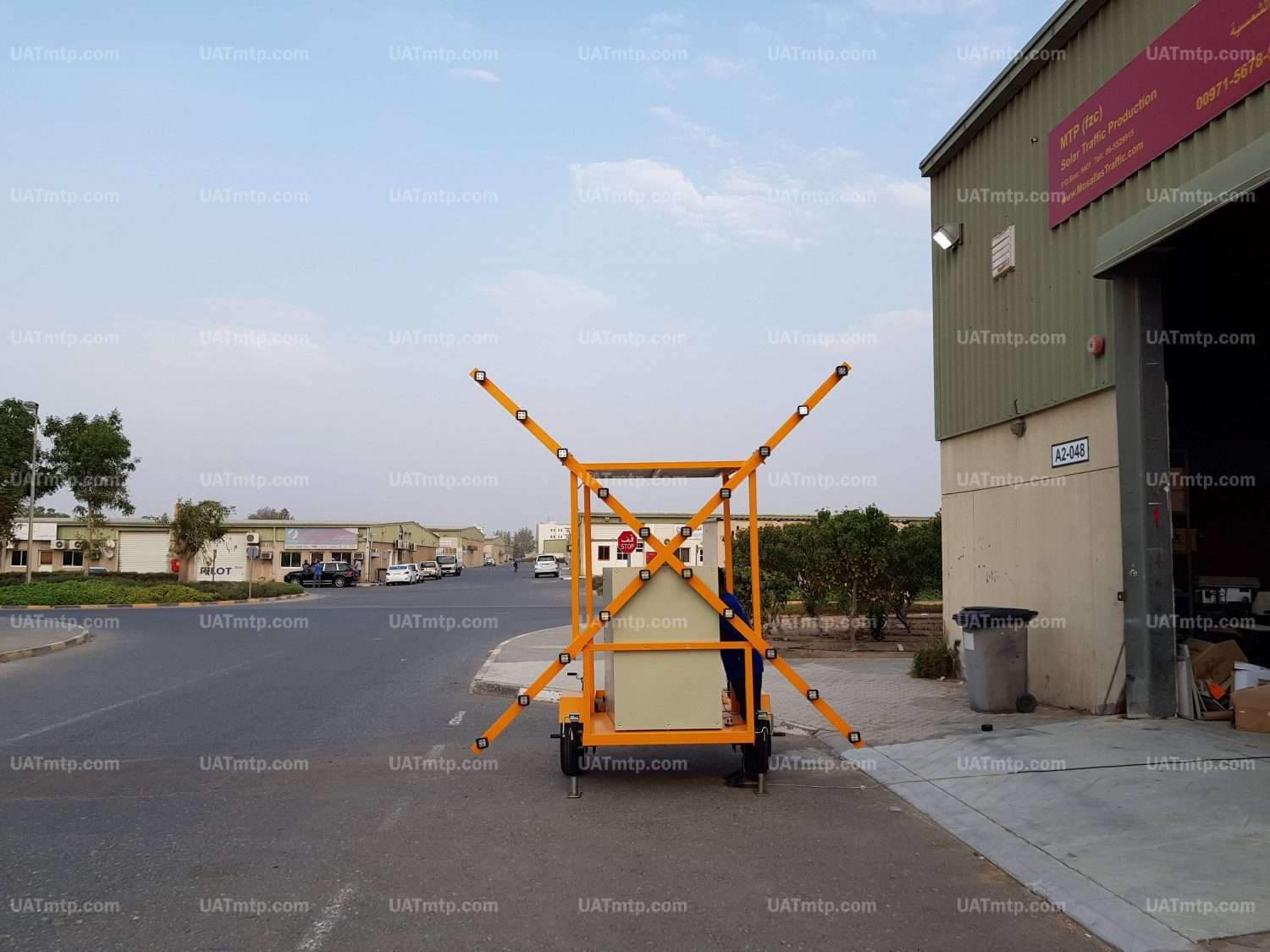

MTP Solar Runway Closure provide a visual indication to pilots that a runway is temporarily closed.

Technical Specification,

• Dimension: Length 230 cm, Height 240 cm, Width 170 cm, Arm 400 cm
• Body Material: Metal with Electrostatic Powder Coating
• Solar power: 200 Watts, Life time more than 20 years
• Battery: Internal 12 volt, 200 Ah, sealed lead acid
• Led quantity: 20 pcs high power LED
• LED Color: Daylight
• Color Temperature: 6500k
• Color Rendering: 65-80
• Luminous Flux: 400cd
• Light life: More than 60,000 Hours
• Light Power: 12 watt for each light
• Light Angle: 85°
• Light View Angle: 90 Degree
• Working time after full charge: 3 days
• Three Working Mode:

1. 1. Double Flashing with high power in solar mode
   2. Single Flashing with half power in solar mode
   3. Single Flasher with maximum power in grid connection mode

Quality of Parts,

LED Light,

It is included 4 pcs high power LEDs with power of 3 watt for each one, Power voltage for LED light is 12 volt DC.
Its Light color is Day Light.

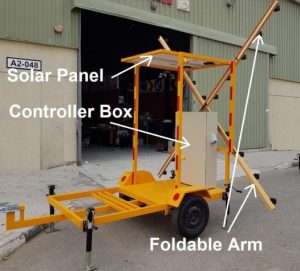

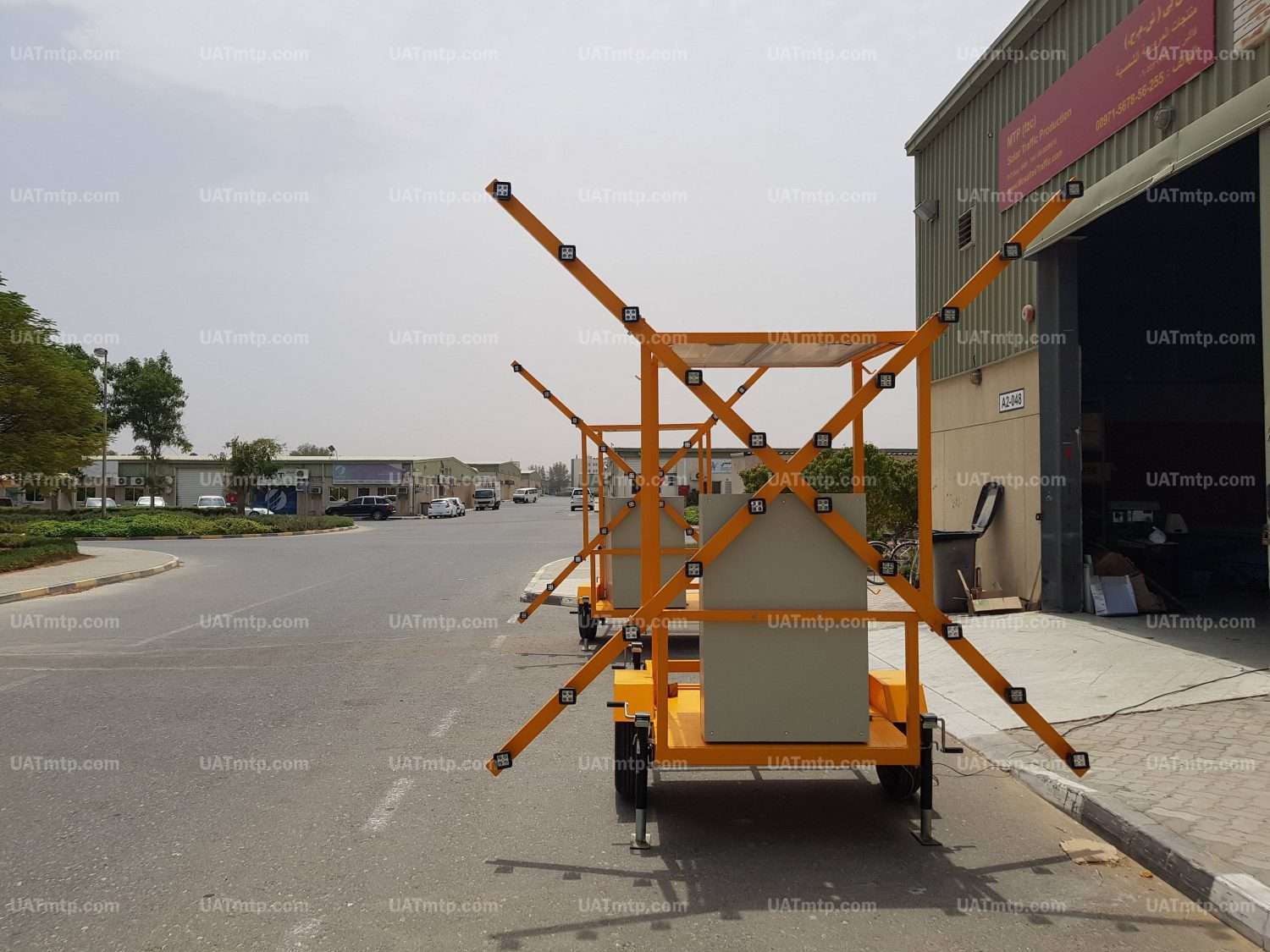

It is fixed by one bracket on the arms of trailer. Totally 20 pcs of this LED Light is installed on the two arms of trailer.
Length of each arm is 4 meter and it can be fold with 1mter of each end on the side of trailer.
Each light is connected to LED Driver on the controller box with individual cable. So totally 20 cables from two arms come to controller box.

LED Light

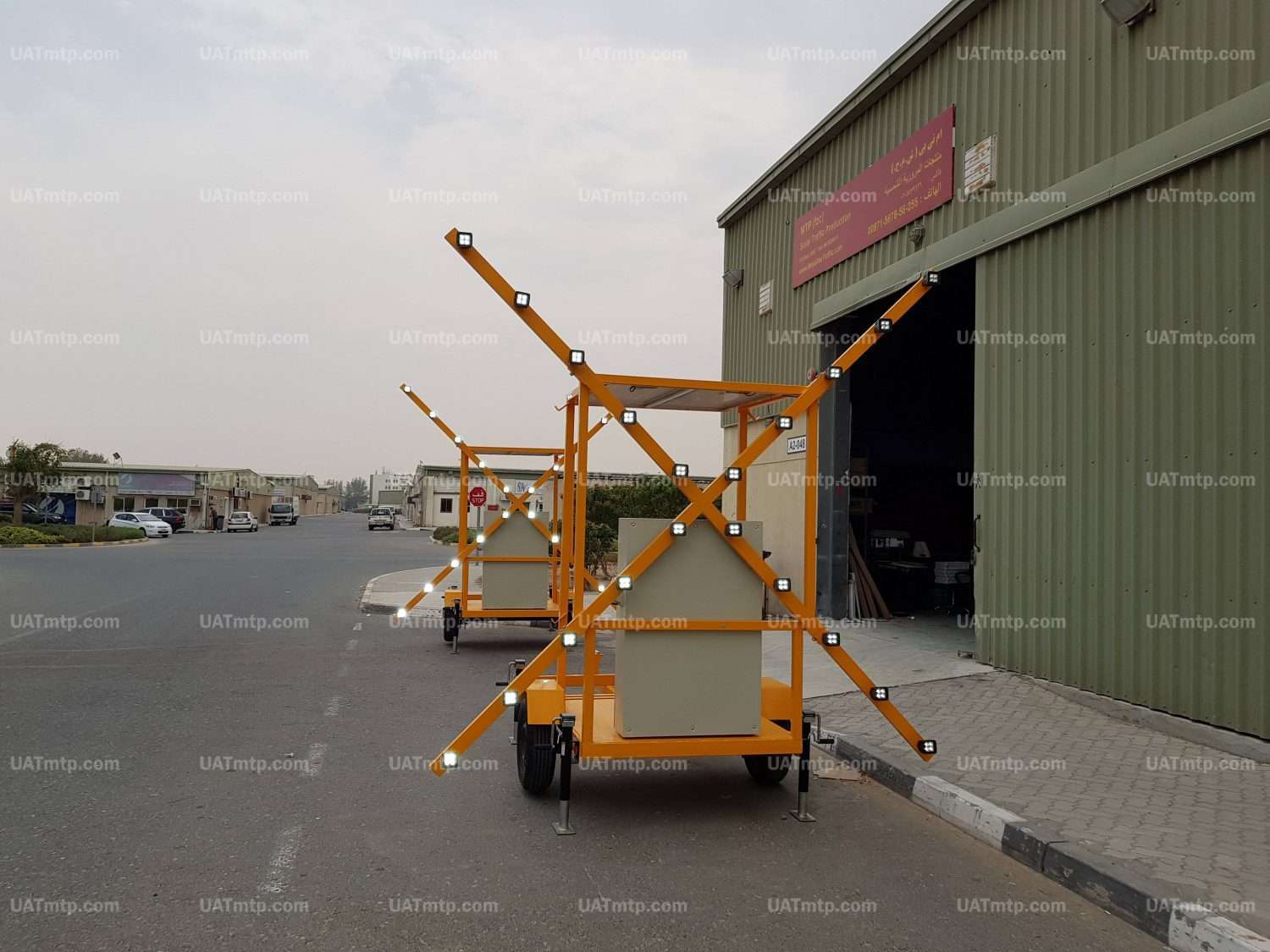

Runway Closure,

MTP Produce Solar Runway Closure as per customers requested design.

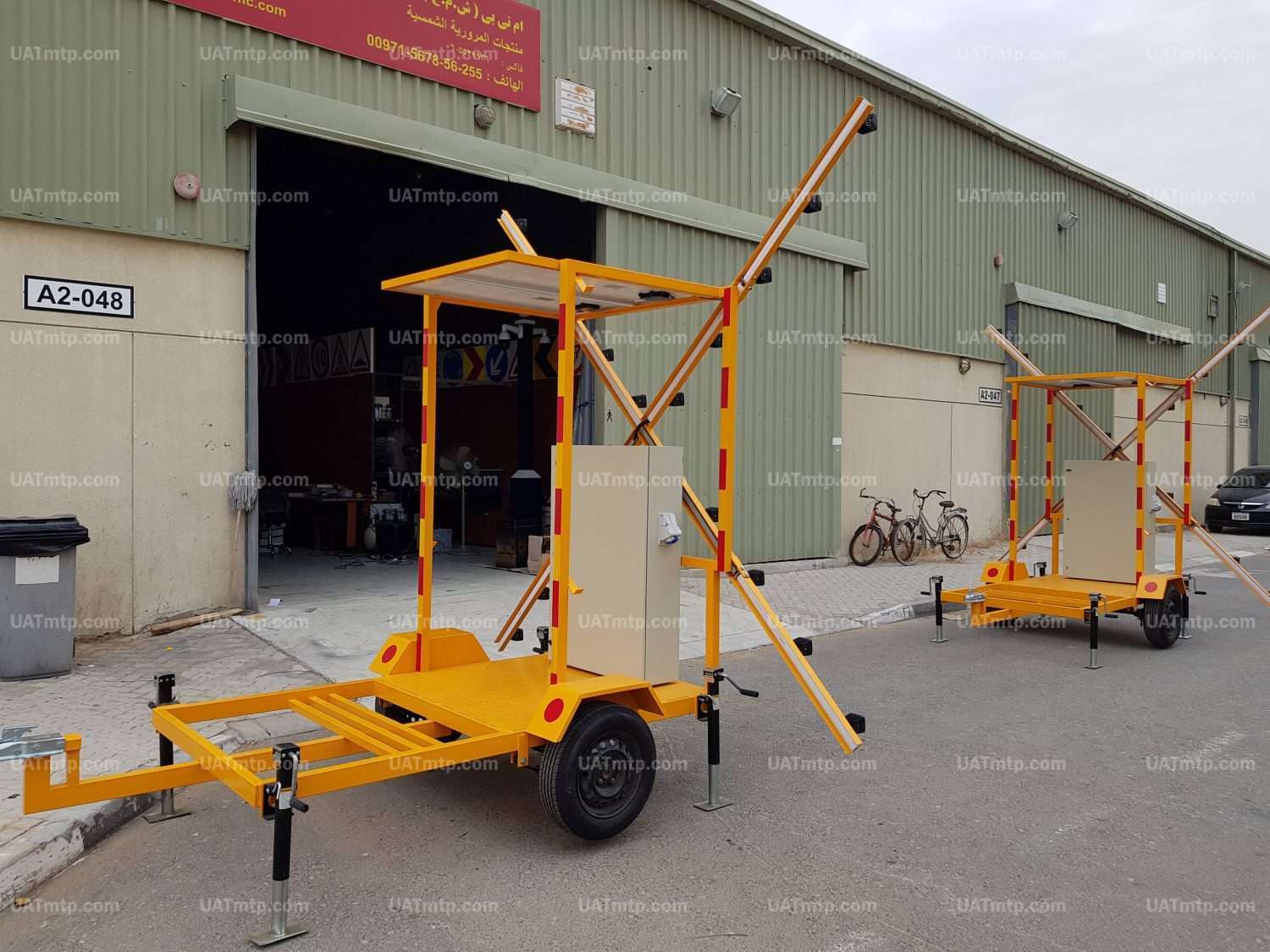

Runway Closure,

Controller Box,

All of LED lights has connection with controller box with individual cable.

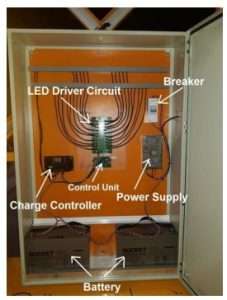

Controlled box is included,

• Two pcs Battery with 12volt and 100A (totally 200A)
• One charge controller
• One power Supply
• One Breaker
• One LED driver Circuit
• One Controller Unit

Controller Box,

Batteries,

Internal 12 volt, 200 Ah, sealed lead acid

Batteries are chargeable Sealed Lead Acid battery. Normally it can get charge from solar panel, but as optional, it can get charge from Electricity Generator through power supply.

Sealed Lead Acid Battery

Generator Connection,

On the right side of Control Box is embedded one plug, so with connection it to Generator, and turn ON breaker, Battery automatically gets charge from generator.

Plug for connecting to Generator

After turning OFF the Breaker, Batteries automatically get charge from Solar Panel and disconnect from generator.

Solar Charge Controller,

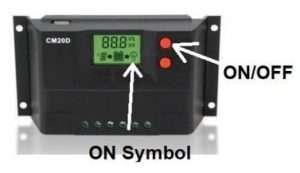

Charge Controller has one Red switch For turning ON/OFF LED Light,
If Lamp symbol appear on display, light going to ON, and if Lamp symbol disappear, light going to OFF.
Voltage of battery show’s by Charge controller continuously and if voltage drop below of 10.7 volt, light will get OFF automatically and return back to ON if voltage rise over than 12.7 volt.
Power Supply convert Generator voltage (220volt AC to 12 volt DC).
Breaker is used for switching between Solar and Generator mode.
If breaker be ON, light powered by Generator, and if Breaker be OFF, light powered by Solar panel.

Solar Charge Controller

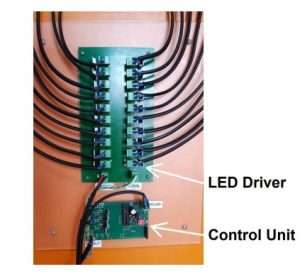

LED Driver and Control Unit,

LED Driver has 20pcs transistor to drive Lights as individually.
Each Light has specific cable for connection to driver. Right group of cables are for one 4 meter arm and left group of cables are for second arm.
Controller unit is used for selecting flashing mode. There is one microswitch with 3 selector.

LED Driver and Control Unit,

Microswitch for selection Mode,

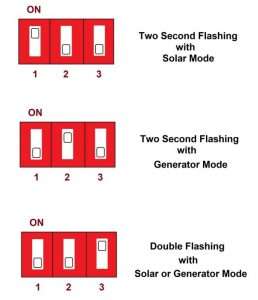

1. Two second Flashing with Solar mode Mode. in this mode light active with half power.
2. Two second Flashing with Generator Mode. in this mode light active with full power.
3. Double Flashing with Solar mode or generator Mode. in this mode light active with full power.

Microswitch for selection Mode,

Solar Panels,

200 Watts, Life time more than 20 years

Solar Panel

Solar Panels,

This product is developed by MTP talented Engineers. It uses solar energy to generate its power and does not need electricity cables. based on this facility MTP Solar Runway Closure can be regarded as a green and ecosystem-friendly product. Using green energies like solar power will cause a decrease in greenhouse gasses. it causes a decrease in environmental temperature.
