960.00$
MTP-Traffic signal lights, commonly known as traffic lights or traffic signals, are devices used at intersections and pedestrian crossings to control the flow of vehicular and pedestrian traffic.
They consist of multiple colored lights arranged in a specific sequence to indicate when vehicles and pedestrians should stop or proceed. The typical traffic signal system includes three main colors: red, yellow (or amber), and green.
For Reference Pictures please visit our Folder Gallery
Electrical Traffic Signal Four House Data Sheet
To Order this product or any other so please Contact us and please follow our social media platforms Facebook, Instagram, LinkedIn, Twitter, YouTube, for any future updates or queries.
Description

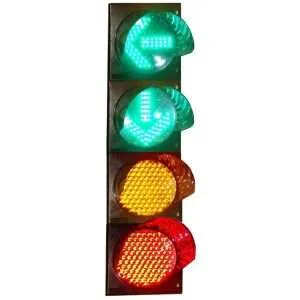

MTP Electrical Traffic Signal Arrow
Traffic signal lights are controlled by a centralized traffic management system or by individual controllers at each intersection. The timing of each color (red, yellow, and green) is carefully programmed based on traffic flow patterns, time of day, and pedestrian activity. Advanced systems may also incorporate sensors and cameras to detect vehicles and adjust signal timings dynamically to optimize traffic flow.
The use of traffic signal lights helps improve traffic safety, reduce congestion, and regulate the orderly movement of vehicles and pedestrians at intersections, thereby minimizing accidents and improving overall traffic efficiency.
Here’s a breakdown of each color and its meaning in traffic signal lights:
- Red Light: Indicates stop. When illuminated, all vehicles and pedestrians must come to a complete stop behind the stop line or crosswalk.
- Yellow (Amber) Light: Generally indicates caution. It is displayed before the light turns red to warn drivers and pedestrians that the signal is about to change. Drivers should prepare to stop unless it is unsafe to do so.
- Green Light: Indicates go. When illuminated, drivers and pedestrians are permitted to proceed through the intersection or crosswalk. However, they must yield to any vehicles or pedestrians still lawfully within the intersection.
The power of 110 volts to 240-volt electricity line and because of using by LED lights, so its power consumption is very low (10 watts for each color).
Technical Specification,
- Dimension: 355*1420*180 mm
- Body Material: Polycarbonate
- Power Supply : 110-240 volt
- Body Color: Black
- Lenz material: Polycarbonate with UV Stabilized
- Led quantity: 330 pcs super high bright
- IP: inside aspect 53 and inside the optical system 65
- Light luminous: 8000 mcd
- Lenz material: Polycarbonate
- Visible distance: more than 2 km
- Angle: 90 degree
Quality of Parts,
Full mask of Flashing Light,
The diameter of full mask is 330 mm in top side and in the point of its connection into main body; this mask has the 300 mm diameter with depth of 215 mm. This connection is done by screw, being put on the body.
Half mask,
Door,
Door shall be fastening on the body, in a shape toggle. Also, it has a rubber for the purpose of insulation.
Lenses,
External lenses made with grid polycarbonate, to being suitable for lens.
LED Casing
LED Module,
Identified very well and amount of their desired life is 100.000 hours in lawful range for traffic light and traffic signals and its light intensity is 8000mcd.
LED
External lens is used for correcting light diffusion. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker.
Brackets,
Each Flashing light has a pairs of holder for connecting main body to its pole, called Bracket.
Brackets
Round Clamp(Hose Clips),
Two round clamp is attached to one set of Flashing Light.
Hose Clip
Useful Points,
MTP is a manufacturer of Traffic Products and Smart Traffic Cameras & Radars.
