Description

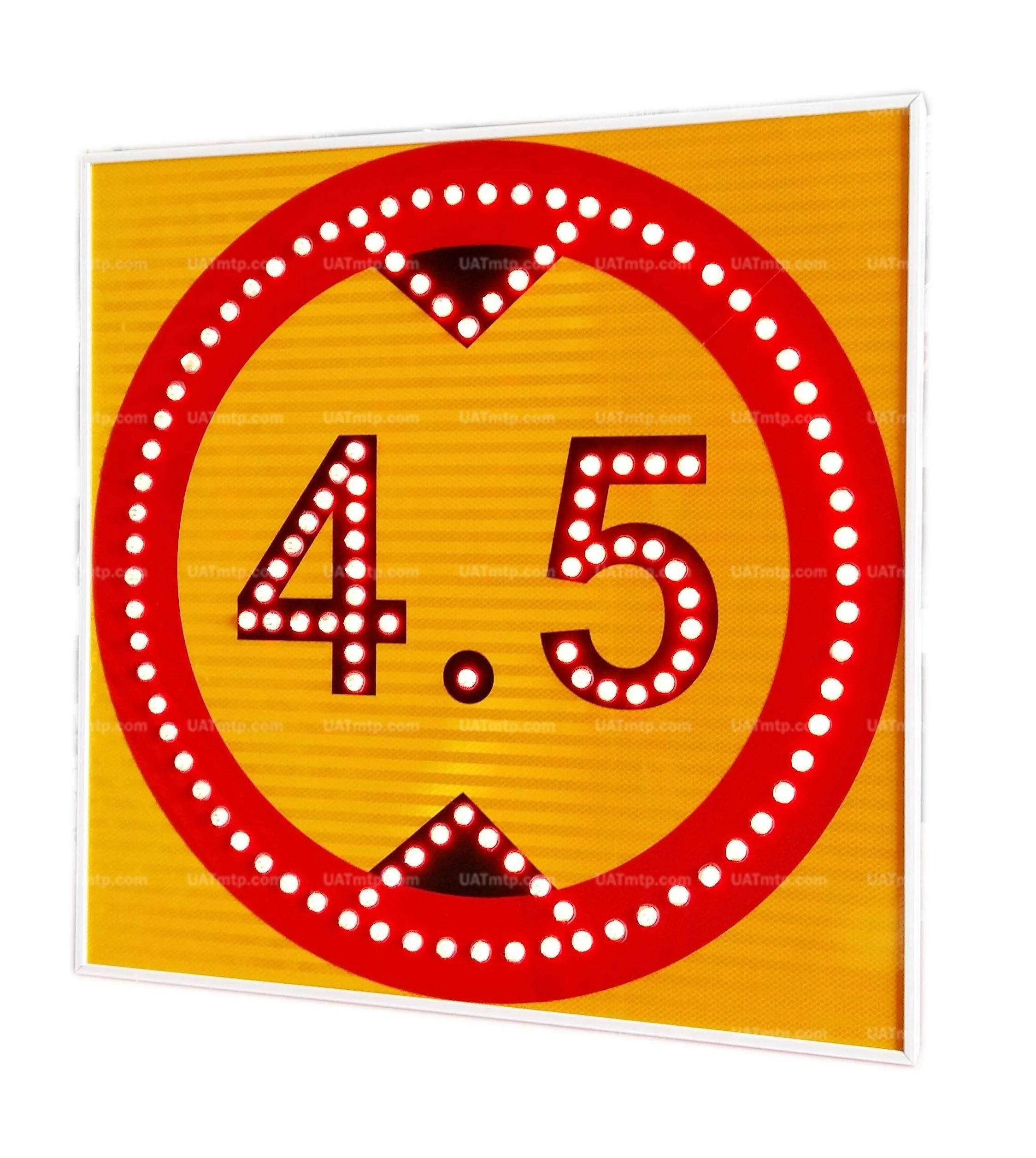

MTP Solar & Electrical Traffic Height Limit Sign (90*90 cm)

As per the attached picture, MTP produces Solar and Electrical Height Limit Signs (90*90 cm) as the customer requested design.

This parameter is one of the best options we offer, if you want something special you can easily trust us to do what you need, we will design and manufacture the best-qualified Speed Limit Sign as per your wish.

What is Platform?

Solar Traffic Height Limit Signs are effective tools for enhancing traffic safety by clearly indicating height restrictions to drivers.

They operate sustainably using solar energy, provide dynamic information to drivers, and contribute to overall road safety efforts by preventing accidents and protecting infrastructure from damage.

LED Display or Warning Lights: Solar traffic height limit signs typically feature bright LED displays or warning lights that activate to alert drivers when a vehicle exceeds the maximum allowable height. These displays are highly visible and help ensure that drivers are aware of the restriction well in advance.

Technical Specification,

• Dimension 90*90*5cm,
• Body Material Aluminum white color and black composite sheet,
• Solar power 20 watts, lifetime more than 20 years,
• Battery Internal 12 volt, 9 Ah, sealed lead acid (more than three years lifetime),
• Led quantity 114 pcs supper high bright,
• Light luminous 8000mcd,
• Automatic switch at night,
• Automatic regulation light intensity in day and night(day intensity 5 times night),
• Charge controller with the microcontroller,
• Lenz material Polycarbonate is unbreakable,
• Lenz Size 22mm,
• Working time after full charge 4 days,
• Working time in cloudy weather 8 days,
• Visible distance of more than 2km,
• Angle 150 degrees,

Quality of Parts,

Reflective Sheet,

LED,

LEDs are identified very well and the amount of their desired life is 100.000 hours in lawful range for the traffic light and traffic signals and its light intensity is 8000mcd.

LED

Lens,

• Lenz material: Polycarbonate unbreakable,
• Lenz Size: 22mm,

An external lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects the electronically set and filters from damages, resulting from strong shock (stone) or burning, as a result of throwing pyrotechnics parts.

These shocks shall cause of damaging the external lens.
Changing and replacing external lenses is easily possible for a worker.

Lens

Batteries,

Internal 12 volts, 9 Ah, sealed lead acid(have no individual battery casing),

Sealed Lead Acid Battery

Solar Panels,

20-watt, warranty 20 years,

Solar Panel

Environmentally Friendly,

This product is created by skilled engineers at MTP. It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product. Greenhouse gas emissions will go down when renewable energy sources like solar power are used. It results in a decrease in the outside temperature.

Image Reference;

Useful Points,
