Description

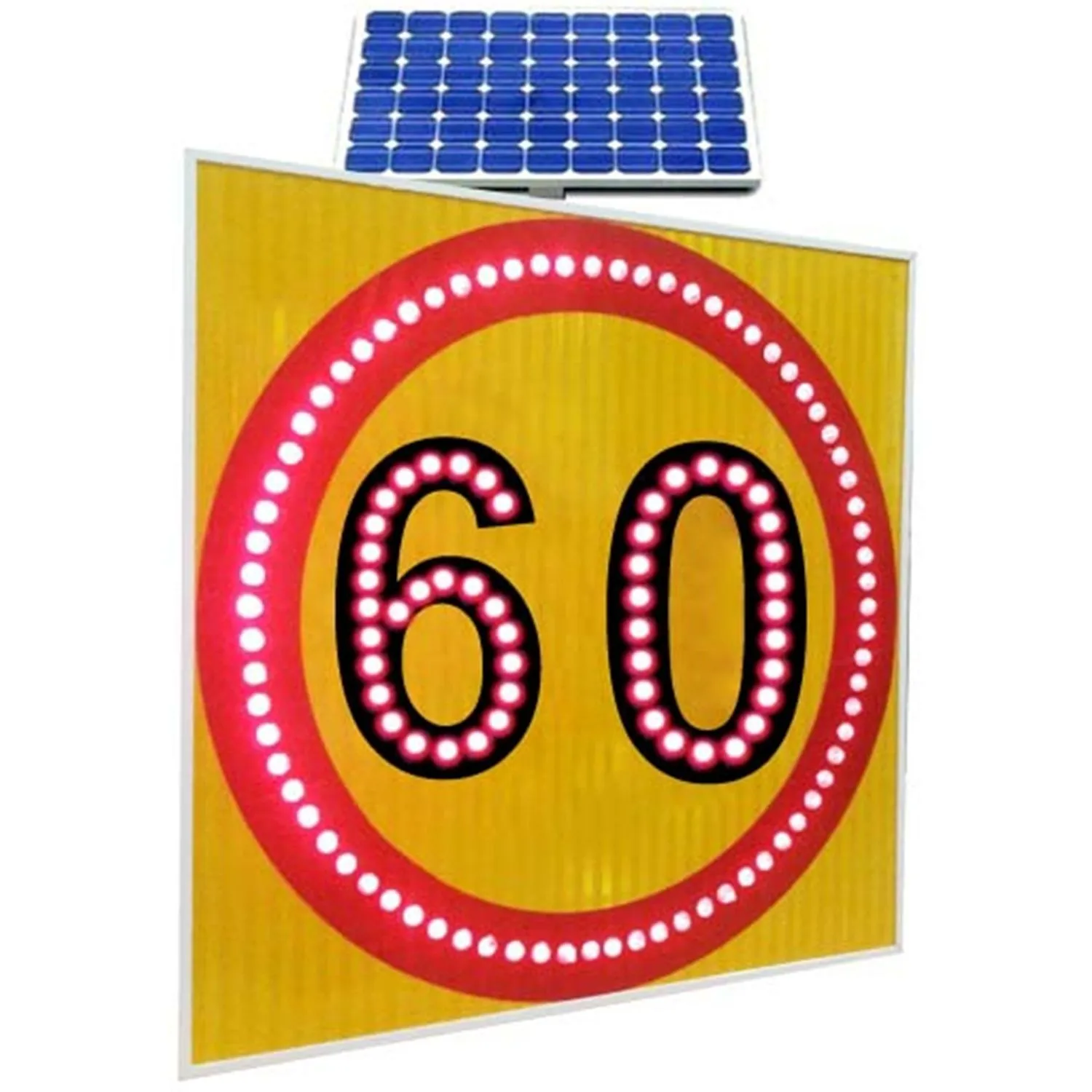

MTP Solar & Electrical Traffic Speed limit Sign Red/Yellow (90*90 cm)

MTP produces Solar and Electrical Traffic Speed limit Sign Red/Yellow (90*90 cm) as customers requested design.

This parameter is one of the best options we offer. if you want something special you can easily trust us to do what you need. we will design and manufacture the best-qualified Speed Limit Sign as per your wish.

What is Platform?

Solar Speed limit signs are designed to understand the maximum or minimum speed that vehicles on that road. Drivers must not exceed the limit that the sign designates.

Solar Speed Warning Signs warn drivers that they are entering a speed zone or going over the speed limit. Blinker Speed Sign can flash 40-50 per minute.

Solar Speed Limit signs bring traffic calm to areas where speeding is an issue. These LED-enhanced signs flash a bright warning in speed zones. They are especially beneficial for new speed zones and those with high levels of non-compliance.

Technical Specification,

• Dimension 90*90*5cm,
• Body Material Aluminum white color and black composite sheet,
• Solar power 20 watts, lifetime more than 20 years,
• Battery Internal 12 volt, 9 Ah, sealed lead acid (more than three years lifetime),
• Led quantity 114 pcs supper high bright,
• Light luminous 8000mcd,
• Automatic switch at night,
• Automatic regulation light intensity in day and night(day intensity 5 times night),
• Charge controller with the microcontroller,
• Lenz material Polycarbonate is unbreakable,
• Lenz Size 22mm,
• Working time after full charge 4 days,
• Working time in cloudy weather 8 days,
• Visible distance of more than 2km,
• Angle 150 degrees,

Quality of Parts,

Reflective Sheet,

LED,

LEDs are identified very well and the amount of their desired life is 100.000 hours in lawful range for the traffic lights and traffic signals and its light intensity is 8000mcd.

LED

Lens,

• Lenz material: Polycarbonate unbreakable,
• Lenz Size: 22mm,

Lens

Batteries,

Internal 12 volts, 9 Ah, sealed lead acid(have no individual battery casing),

Sealed Lead Acid Battery

Solar Panels,

20-watt, warranty 20 years

Solar Panel

Environmentally Friendly,

This product is created by skilled engineers at MTP. It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product. Greenhouse gas emissions will go down when renewable energy sources like solar power are used. It results in a decrease in the outside temperature.

Image Reference;

Useful Points,

MTP is a manufacturer of Traffic Products and Smart Traffic Cameras & Radars.

You can find more info about Speed Limit Sign (SLS) product history on Wikipedia.

We offer you a wide range of Traffic-Related Products, One stop solution for engineering, electrical, electronic, and technological needs,
