Description

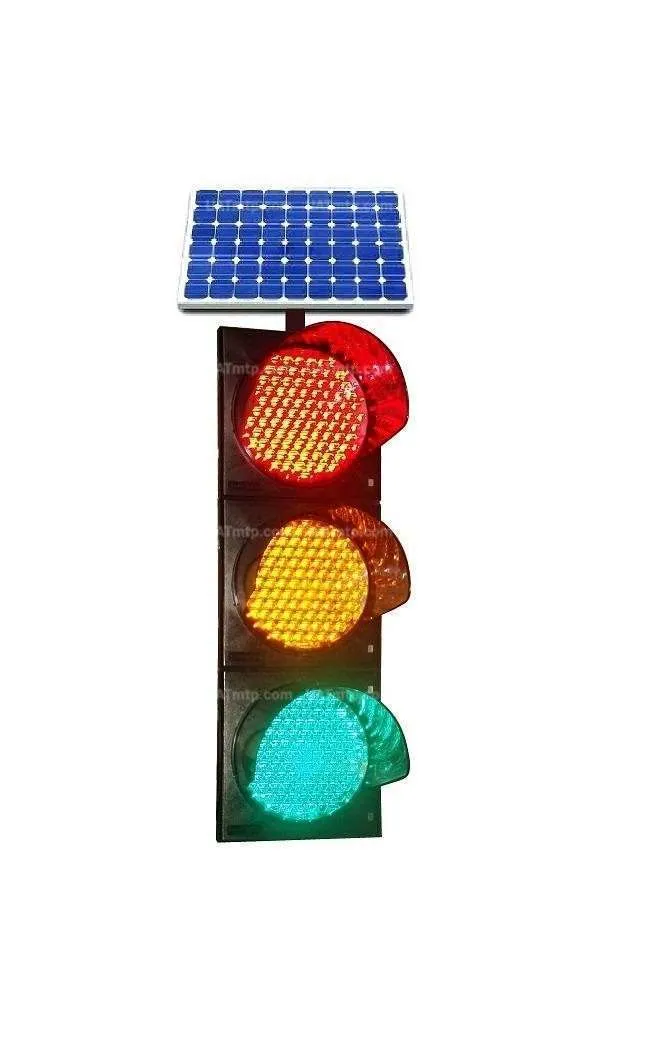

MTP Solar Traffic Signal Three Colors with 3 House

Traffic signal lights are controlled by a centralized traffic management system or by individual controllers at each intersection. The timing of each color (red, yellow, and green) is carefully programmed based on traffic flow patterns, time of day, and pedestrian activity. Advanced systems may also incorporate sensors and cameras to detect vehicles and adjust signal timings dynamically to optimize traffic flow.

The use of traffic signal lights helps improve traffic safety, reduce congestion, and regulate the orderly movement of vehicles and pedestrians at intersections, thereby minimizing accidents and improving overall traffic efficiency.

Here’s a breakdown of each color and its meaning in traffic signal lights:

1. Red Light: Indicates stop. When illuminated, all vehicles and pedestrians must come to a complete stop behind the stop line or crosswalk. It is used to allow cross traffic or pedestrians to proceed safely.
2. Yellow (Amber) Light: Generally indicates caution. It is displayed before the light turns red to warn drivers and pedestrians that the signal is about to change. Drivers should prepare to stop unless it is unsafe to do so.
3. Green Light: Indicates go. When illuminated, drivers and pedestrians are permitted to proceed through the intersection or crosswalk. However, they must yield to any vehicles or pedestrians still lawfully within the intersection.

Benefits of solar traffic signal lights include:

• Environmental Friendliness: They reduce reliance on grid electricity, thus lowering carbon emissions.
• Cost Efficiency: Once installed, they have lower operating costs since they use free solar energy.
• Reliability: They can operate independently of grid power outages.

Solar traffic signal lights are particularly useful in remote areas where extending electrical infrastructure is costly or impractical. They also contribute to sustainability efforts by reducing the carbon footprint associated with conventional traffic signals.



Technical Specifications,

• Dimension: 355*1065*180 mm
• Body Material: Polycarbonate
• Solar power: 50 watt, warranty 20 years
• Battery: Internal 12 volt, 36 Ah, sealed lead acid (have not individually battery casing)
• Led quantity: 330 pcs super high bright
• Light luminous: 8000 mcd
• Automatic regulation light intensity in day and night(day intensity 5 times night)
• Charge controller with microcontroller
• Lenz material: Polycarbonate
• Working time after full charge: 7 days
• Working time in cloudy weather: 14 days
• Visible distance: more than 2 km
• Angle: 90 degree

Quality of Parts,

Full mask of Flashing Light,

The diameter of full mask is 330 mm in top side and in the point of its connection into main body; this mask has the 300 mm diameter with depth of 215 mm. This connection is done by screw, being put on the body.

Half mask,

The height of this mask is 185 mm in outside of the body and its width is considered 230 mm in the place of its connection with main body. This is done by a screw, being put on the body.

Door,

Door shall be fastening on the body, in a shape toggle. Also, it has a rubber for the purpose of insulation.

Casing,



Lenses,

External lenses made with grid polycarbonate, to being suitable for lens.

LED Casing

LED Module,

LED’s are identified very well and amount of their desired life is 100.000 hours in lawful range for traffic light and traffic signals and its light intensity is 8000 mcd.

LED

External lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects electronically set and filter from damages, resulting from strong shock (stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker.

Batteries,

Internal 12 volt, 36 Ah, sealed lead acid (have not individually battery casing)

Sealed Lead Acid Battery

Solar Panels,

50 watt, warranty 20 years

Solar Panel

Brackets,

Each Signal light has a pairs of holder for connecting main body to its pole, called Bracket.

Brackets

Round Clamp(Hose Clips),



Hose Clip

Environmentally Friendly,

This facility suggests that the MTP Products is an environmentally friendly and green product. It results in a decrease in the outside temperature.
