505.00$
MTP-Traffic arrow sign boards play a crucial role in directing and regulating traffic flow, improving safety, and enhancing the overall efficiency of road networks by providing clear and concise directional information to drivers.
These kind of Traffic Arrow Signs are used in the critical city and urban area. It is powered by a solar panel, so it doesn’t need a city electricity line. For this reason, We use High power LED light for highways and normal LED lights for the city area.
For Reference Pictures please visit our Gallery Folder,
Solar Traffic Direction Arrow Sign Data Sheet
To Order this product or any other so please Contact us and please follow our social media platforms Facebook, Instagram, LinkedIn, Twitter, YouTube, for any future updates or queries.
Description

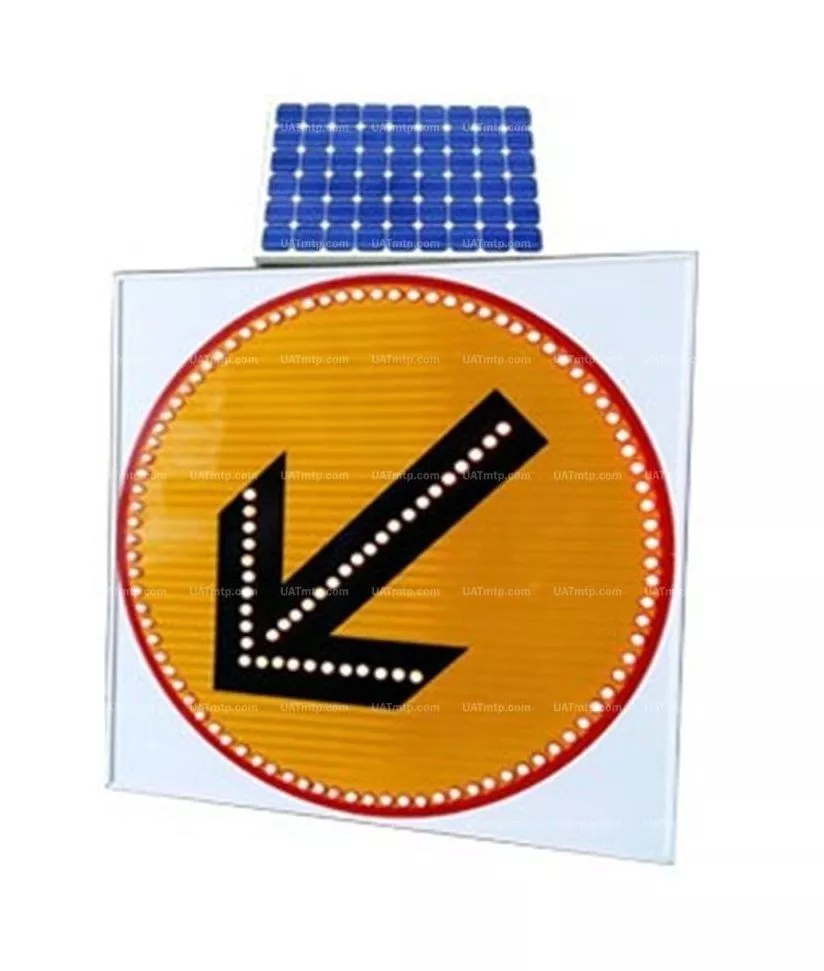

MTP Solar Traffic Direction Arrow Sign Keep Left (80*80 cm)
MTP Produce Solar Traffic Direction Arrow Sign Keep Left with Red, Yellow and Black Reflective Sheet (80*80 cm) as per customers requested design.
This parameter is one of the best options we offer. if you want something special you can easily trust us to do what you need. we will design and manufacture the best-qualified Speed Limit Sign as per your wish.
What is Platform?
Arrow traffic signs direct vehicles and avert accidents with ordinary and simple directions. That signs Convert people in the right (or left) direction.
Technical Specification,
- Dimension: 80*80*5cm
- Body Material: Aluminum white color
- Solar power: 10 watt, life time more than 20 years
- Battery: Internal 12 volt, 7 Ah, , sealed lead acid(have not individually battery casing)
- Led quantity: 100 pcs supper high bright
- Light luminous: 8000mcd
- Automatic switch at night
- Automatic regulation light intensity in day and night(day intensity 5 times night)
- Charge controller with microcontroller
- Lenz material: Polycarbonate unbreakable
- Lenz Size: 22mm
- Working time after full charge: 4 days
- Working time in cloudy weather: 8 days
- Visible distance: more than 2 km
- Angle: 150 degree
Quality of Parts,
Reflective Sheet,
LED,
LED’s are identified very well and amount of their desired life is 100.000 hours in lawful range for traffic light and traffic signals and its light intensity is 8000mcd.
LED
Lens,
- Lenz material: Polycarbonate unbreakable
- Lenz Size: 22mm
External lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects electronically set and filter from damages, resulting from strong shock
(stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker
Lens
Batteries,
Internal 12 volt, 7 Ah, , sealed lead acid(have not individually battery casing)
Sealed Lead Acid Battery
Solar Panels,
10 watt, warranty 20 years
Solar Panel
Environmentally Friendly,
This product is created by skilled engineers at MTP. It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product. Greenhouse gas emissions will go down when renewable energy sources like solar power are used. It results in a decrease in the outside temperature.
