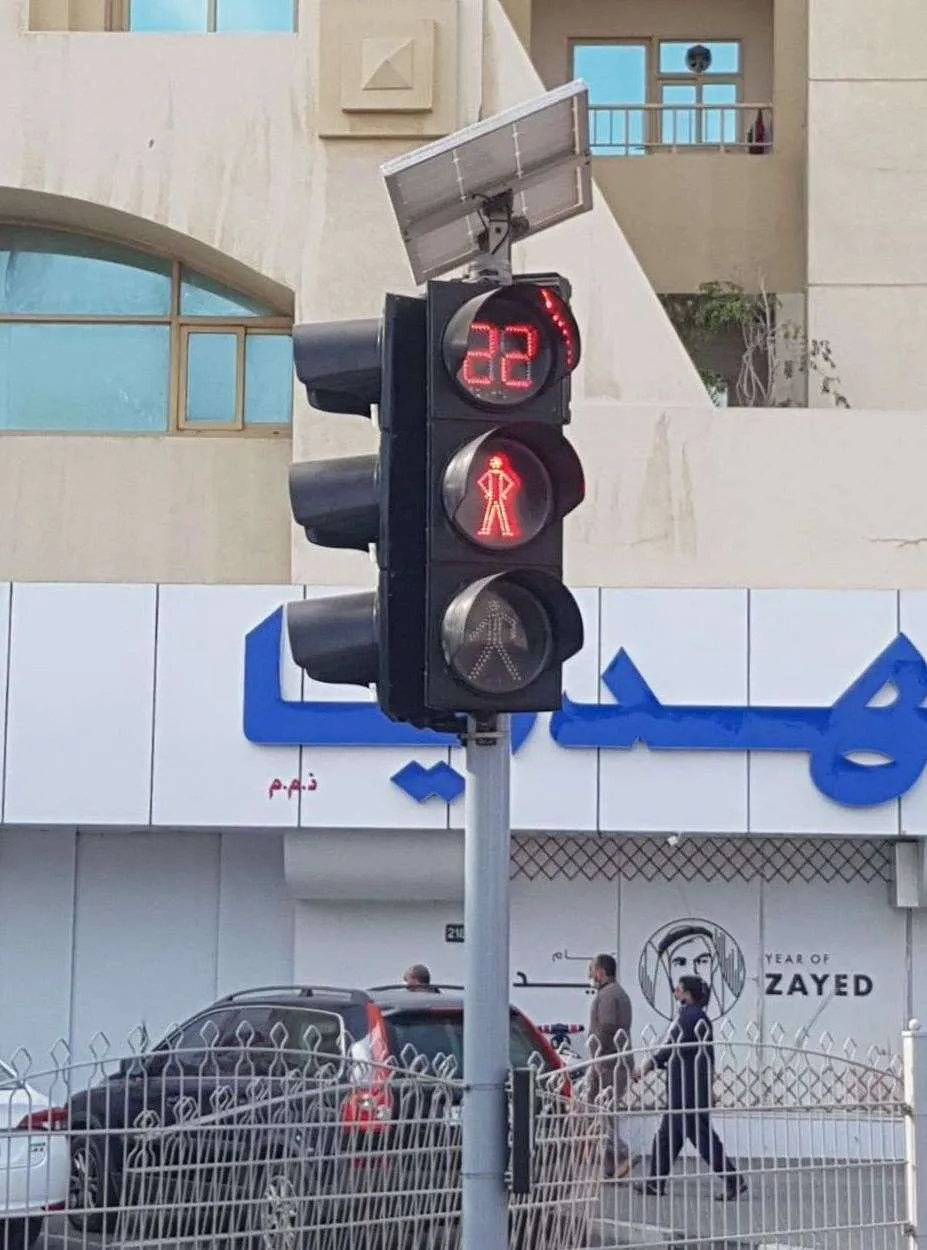

MTP Pedestrian Crossing Traffic Signal Push button with Countdown Timer

MTP Produce Solar Traffic Pedestrian Signs according to the customer’s requested design, this parameter is one of the best options we offer, you can have your customized Traffic Pedestrian Signal with Push Button.

What is this Platform Exactly?

MTP Launch Pedestrian Crossing Traffic Signal Push button with Countdown Timer system which will help in better control of traffic.

Countdown timers at red lights would inform drivers how much time remained before the light turned green, while timers at green lights would tell drivers how much time was left before the light turned red.

MTP Pedestrian countdown timer shows how long pedestrians must wait behind the pedestrian signal to get the green light for passing cross walking area. usually, the pedestrian must wait around 8 to 60 seconds after pushing the push button, and it loads tension on the pedestrian because of the unknown waiting time.

Our Pedestrian countdown timer prevents pedestrian tension cause of the unknown waiting time behind of red pedestrian signal with the Red countdown timer.

MTP Pedestrian countdown timer has a Green countdown timer too which allows to pedestrians decide if they have enough time to cross the road or not.

With all of this in mind, MTP created a Digital Pedestrian Countdown Timer system that lets passers-by see how many seconds the signal will turn Red and how many seconds it will turn green.

These pedestrian signals have digital timers that display how many seconds pedestrians have to wait and how much time have for crossing the road.

Advantages

• The pedestrian will look at the countdown timer to understand whether he can cross the road or not
• Pedestrians feel less rushed when waiting for the open cross-walking area
• Pedestrians feel less rushed when crossing the road
• Gives more confidence to mobility-impaired pedestrians, who may cross more slowly
• Pedestrians who didn’t notice a green man signal can decide if they have enough time to cross the road or not
• Pedestrian Crossing Traffic Signals can reduce the number of accidents on roads like pedestrian accidents and right-angle collisions between two cars

Effectiveness

Public opinion,

• We feel safe because of these timers,” Pedestrian said. “Accidents could be avoided if timers were installed at traffic signals.
• Pedestrian countdown signals are well-liked by pedestrians, especially those that are mobility impaired.
• Mobility Impaired people and children prefer crossings with Pedestrian countdown timers compared to those without timers.
• Pedestrians felt much safer when using a pedestrian countdown signal, and they also felt less rushed when crossing the road.

Vehicles

• The system can allow for less green man time for pedestrians, which can then be reallocated to motor vehicles, which means without pedestrian signals in rush areas people do give not the way to vehicles because always new people start crossing the road. But pedestrian signals give limited time to pedestrians and open roads for vehicles.

Explanation,

Technical Properties of Wireless Solar Traffic Signal,

1. Quality of Parts

The quality of all parts of the signal is from the finest materials of polycarbonate. Also, the color of the body box is special for this kind of work and has the following technical properties,

• Melting point: 485 ̊c
• Degree of heat in glass removing: 150 ̊c
• Shock strength: 12kg cm
• Tensile resistance: 59kg cm2

2. Size of its body,

Solar Traffic Signal with dimension

Solar Pedestrian with dimension

3. Full mask of Flashing Light,

The diameter of the full mask is 330mm on the top side and at the point of its connection into the main body; this mask has a 300 mm diameter with a depth of 215mm. This connection is done by a screw, being put on the body.

4. Half mask,

The height of this mask is 185mm on the outside of the body and its width is considered 230mm in the place of its connection with the main body. This is done by a screw, being put on the body.

5. Door,

The door shall be fastened on the body, in a shape toggle. Also, it has rubber for the purpose of insulation.

The casing of the Traffic Signal

6. Casing,

6.1: Casing,

The casing of the traffic signal is made with high-quality polycarbonate, being suitable for the traffic signal.

6.2: Lenses,

External lenses are made with grid polycarbonate, to be suitable for lenses.

LED Casing

6.3: LED Module,

LEDs are identified very well and the amount of their desired life is 100.000 hours in lawful range for traffic lights and traffic signals and its light intensity is 8000mcd.

The total numbers of LEDs in one module are equal to 110pcs.

Also, it is responsible for protecting the set, so that it protects the electronically set and filter from damages, resulting from strong shock (stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be the cause of damaging the external lens.
Changing and replacing external lenses is easily possible for a worker.

7. Batteries,

Sealed Lead Acid batteries of 12v, 36Ah, having desired life of 5 years.

Sealed Lead Acid Battery

8. Solar Panels,

Each set Pedestrian Signal has a 60W, 18v, 3.66A solar panel with an efficiency of %16.
Each solar panel has a cable, having 2 blue & black wires.

Solar Panel(60watt)

9. Charge Controller,

• Measuring voltage of the battery, solar panel, charge current and related measuring.
• Displaying voltage of the solar panel, the voltage of the battery, over voltage cut off charge, and low voltage cut.
• Prevent overcharge with the cut-off of the solar panels.
• Load cutting while the voltage of the battery drops to the minimum level of acceptable voltage for the battery.
• Working time, without any charge and with full battery is almost 14 days.
• Charging time for an empty battery is 24 hours in light, in case of performing the operation, and 18 hours without any operation.

Charge Controller

10. Intelligent Microcontroller System,

• Getting data from Wireless Receiver and applying it to three color signals and Pedestrian.
• Light Regulation and optimization of consumption, according to charge current (environmental light) and battery voltage and solar panel.
• Neutralizing effects of the battery voltage in light illumination of flashing light.
• Maximum exited rates (day) into its minimum (night) is 5 to 1 and (it is changeable, on the basis of order).
• Using modulation of PWM for changing light illumination.

Controller Box

11. Push Button,

It has one push button switch and 4pcs LED indicator, After pushing this button, one internal timer will start counting down and the LED indicator will blink.
Once the internal countdown timer reaches zero, the vehicle signal will go to red and the pedestrian signal going to green.

Push Button

12. Brackets,

Each Signal light has a pair of holders for connecting the main body to its pole, called a Bracket. For this installation, at first, Brackets are faster on the main body, then the Signal light will be installed on its pole by 2pcs of hose clips.

Brackets

13. Round Clamp(Hose Clips),

3pcs for fixing 3 color signals (vehicle signal) and two color signals (pedestrian signal), 2pcs for fixing the solar panel, and 2pcs for fixing Push Button Box on the pole.

Hose Clip

14. Post,

Hot Galvanized with 3.3m length and 11.5cm diameter and 4mm wall thickness, with Electrostatic Powder Coating Color.

Post

Technical Specification

• Solar Power: 50 Watts, Life time more than 20 years
• Battery: Internal 12 volt, 36 Ah, sealed lead acid
• LED Life: More than 100,000 Hours
• Light luminous: 8000mcd
• Light Intensity: Automatic regulation of light intensity day and night(day intensity 5 times night) with a microcontroller
• Wireless Transmitter and Receiver: 433 MHz
• Covered Area: 300m diameter
• Working time after full charge: 4 days
• Working time in cloudy weather: 8 days
• Visible Distance: More than 1000m
• Angle: 100 Degree
• Operating Temperature: -20° C to 75° C
• Waterproof: IP65

Environmentally Friendly,

This product is created by skilled engineers at MTP.  It results in a decrease in the outside temperature.
