Description

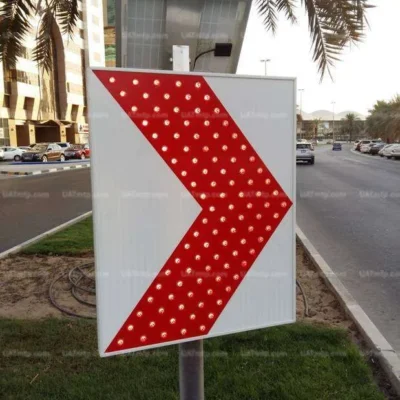

MTP Solar Traffic Chevron Sign (40*60)

• Permanent Solar Traffic Chevron Sign

These kind of Solar Traffic Chevron Sign (40*60) are used in a critical city and urban areas.

• Temporary Solar Traffic Chevron Sign

These kinds of Solar Traffic Chevron Sign (40*60) are used under construction road areas.

Explanation,

Solar-Powered Operation: These signs are equipped with solar panels that convert sunlight into electrical energy. The solar panels charge batteries during daylight hours, allowing the sign to operate independently of the electrical grid.

LED Illumination: Solar traffic chevron signs typically feature bright LED lights arranged in a chevron (arrow) pattern. These LEDs light up when it gets dark or when ambient light levels drop below a certain threshold, ensuring the sign remains visible to drivers.

Installation Flexibility: Because they operate independently of the electrical grid, solar traffic chevron signs can be easily installed in various locations without the need for extensive wiring or infrastructure modifications. This flexibility allows for cost-effective deployment and repositioning as needed.

Technical Specification,

• Dimension: 40*60*5cm
• Body Material: Aluminum white and black color
• Solar power: 10 watt, life time more than 20 years
• Battery: Internal 12 volt, 7 Ah, sealed lead acid(more than three years life time
• Led quantity: 65 pcs supper high bright
• Light luminous: 8000mcd
• Automatic switch at night
• Lenz material: Polycarbonate unbreakable
• Lenz Size: 22mm
• Working time after full charge: 4 days
• Working time in cloudy weather: 8 days
• Visible distance: more than 1km
• Selectable: Right, Left
• Angle: 150 degree

Quality of Parts,

Reflective Sheet,

LED,



External lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects electronically set and filter from damages, resulting from strong shock
(stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker

Lens

Batteries,

Internal 12 volt, 7 Ah, sealed lead acid(have not individually battery casing)

Sealed Lead Acid Battery

Solar Panels,

10 watt, warranty 20 years

Solar Panel

Environmentally Friendly,

It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product. It results in a decrease in the outside temperature.

Useful Points,
