430.00$
MTP-Solar Traffic Chevron Signs are effective tools for enhancing roadway safety by clearly indicating upcoming curves or changes in road alignment to drivers.
They operate sustainably using solar energy, provide dynamic visual alerts, and contribute to overall road safety efforts by promoting safe driving practices.
For Reference Pictures please visit our Gallery Folder,
Solar Traffic Serial Chevron Sign 40×80 Data Sheet
To Order this product or any other so please Contact us and please follow our social media platforms Facebook, Instagram, LinkedIn, Twitter, YouTube, for any future updates or queries.
Description

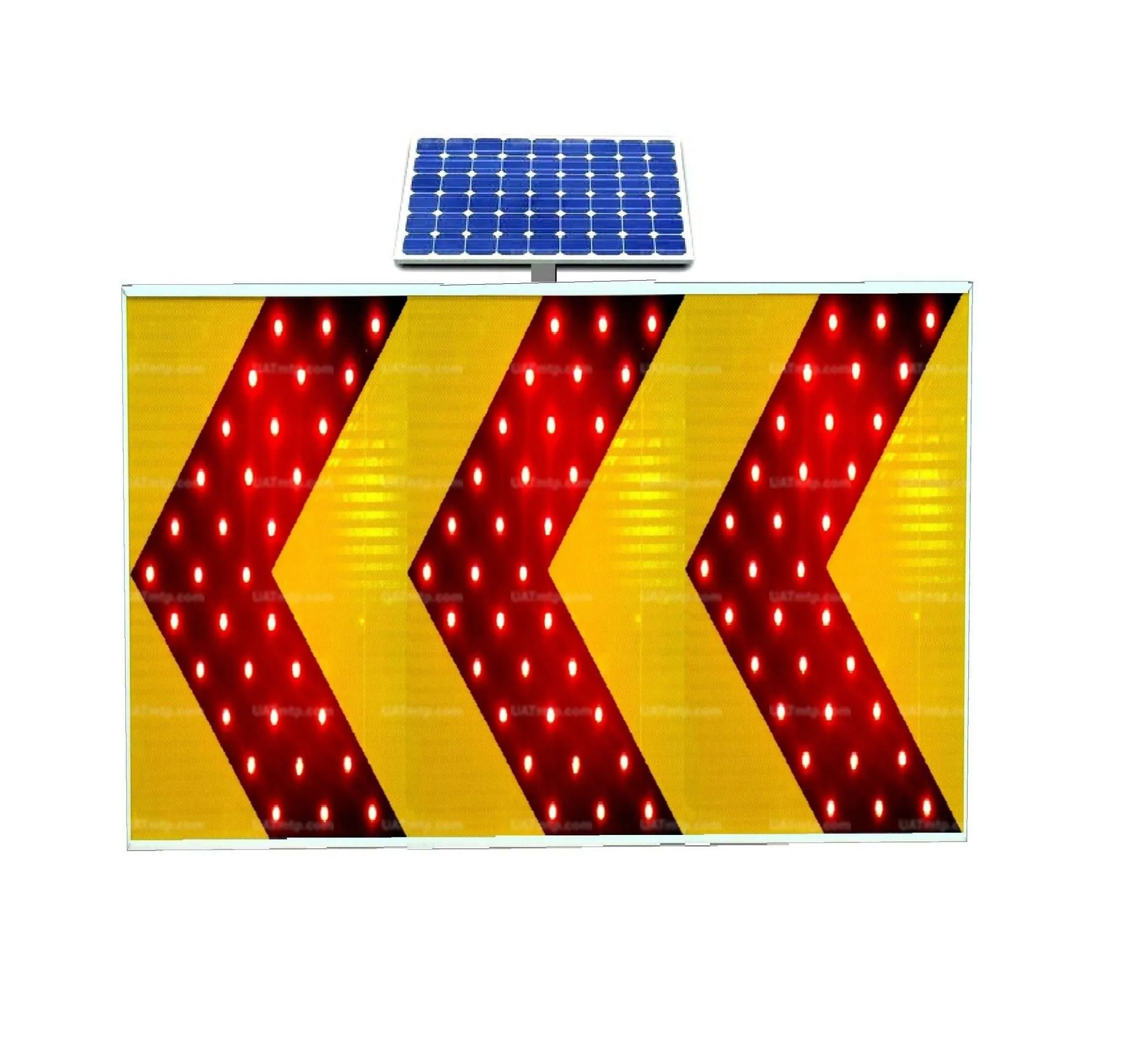

MTP Solar Traffic Serial Chevron (40*80)
-
Permanent Solar Traffic Chevron Sign
These kind of Solar Traffic Serial Chevron (40*80) are used in a critical city and urban areas.
-
Temporary Solar Traffic Chevron Sign
These kinds of Solar Traffic Serial Chevron (40*80) are used under construction road areas.
Explanation,
Solar-Powered Operation: These signs are equipped with solar panels that convert sunlight into electrical energy. The solar panels charge batteries during daylight hours, allowing the sign to operate independently of the electrical grid.
LED Illumination: Solar traffic chevron signs typically feature bright LED lights arranged in a chevron (arrow) pattern. These LEDs light up when it gets dark or when ambient light levels drop below a certain threshold, ensuring the sign remains visible to drivers.
Installation Flexibility: Because they operate independently of the electrical grid, solar traffic chevron signs can be easily installed in various locations without the need for extensive wiring or infrastructure modifications. This flexibility allows for cost-effective deployment and repositioning as needed.
Technical Specification,
- Dimension: 40*80*5cm
- Body Material: Aluminum white color
- Solar power: 10 watt, life time more than 20 years
- Battery: Internal 12 volt, 7 Ah, sealed lead acid(more than three years life time
- Led quantity: 99 pcs supper high bright
- Light luminous: 8000mcd
- Automatic switch at night
- Automatic regulation light intensity in day and night(day intensity 5 times night)
- Charge controller with microcontroller
- Lenz material: Polycarbonate unbreakable
- Lenz Size: 22mm
- Working time after full charge: 4 days
- Working time in cloudy weather: 8 days
- Visible distance: more than 1km
- Selectable: Right, Left
- Angle: 150 degree
Quality of Parts,
Reflective Sheet,
- Durable – tougher topcoat aids against scuffs and scratches
- Vivid daytime colors provide 24-hour performance with increased daytime visibility.
- Improved optical package increases nighttime visibility
- Meets multiple specifications
![](https://mtppoland.com/wp-content/uploads/2024/07/Materials19-300x187.webp)
LED,
LED’s are identified very well and amount of their desired life is 100.000 hours in lawful range for traffic light and traffic signals and its light intensity is 8000mcd.
LED
Lens,
- Lenz material: Polycarbonate unbreakable
- Lenz Size: 22mm
External lens is used for correcting light diffusion. Also, it is responsible for protecting the set, so that it protects electronically set and filter from damages, resulting from strong shock
(stone) or burning, as a result of throwing pyrotechnics parts. These shocks shall be cause of damaging external lens.
Changing and replacing external lens is easily possible by a worker
Lens
Batteries,
Internal 12 volt, 9 Ah, sealed lead acid(have not individually battery casing)
Sealed Lead Acid Battery
Solar Panels,
20 watt, warranty 20 years
Solar Panel
Environmentally Friendly,
It doesn’t require electrical lines because it generates power using solar energy. This facility suggests that the MTP Products is an environmentally friendly and green product. It results in a decrease in the outside temperature.
Image Reference;
Useful Points,
